Feeney CableRail Kits are the easiest, most popular, and best-priced cable infill options. Use for Wood Posts or Metal Posts. Each CableRail Kit includes all parts to complete and tension one run of cable. CableRail Kits are designed to terminate through the post. For outside of post to outside of post connection, where a hole is drilled through the connecting posts, cable and fittings are inserted and tensioned.
Download Feeney's Brochure to Learn All About Fittings, Connectors, and Cable Railing Options.

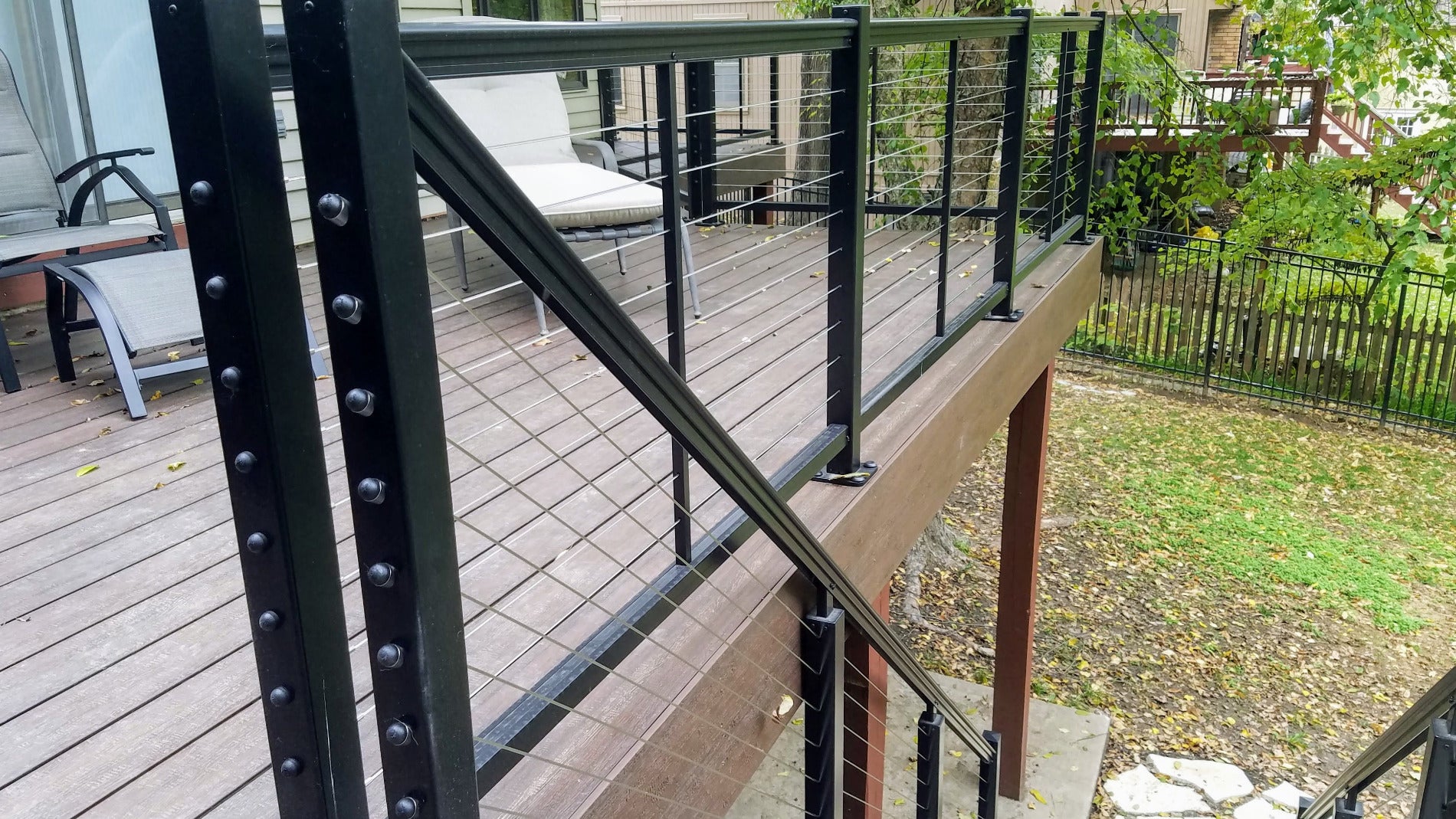

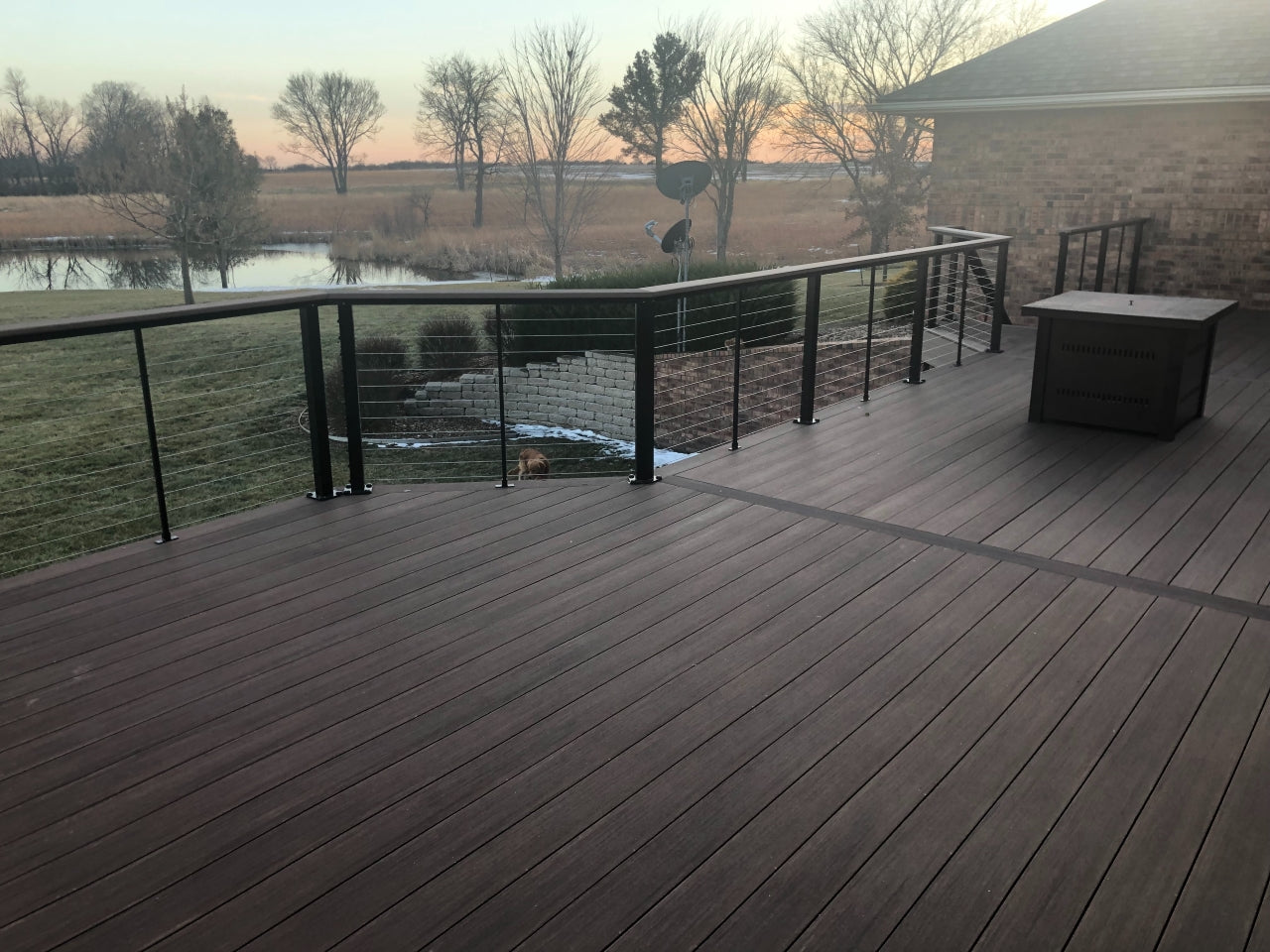

Metal CableRail Kits are designed to work with a 4x4 or smaller metal post such as DesignRail Kits by Feeney. Each kit contains materials to complete one run of cable. each section should require between 9 and 11 runs to have enough cable infill for a 36" Rail. Kits Included: A quick-connect fitting, two washers for metal, a washer nut, and a 4-1/4" Treaded Terminal Pre-Swaged to cable wire. CableRail Kits are available in 5 foot, 10 foot, 15 foot, 20 foot, 25 foot, 30 foot, 40 foot, and 50-foot lengths.
Feeney CableRail Kit for Wood Posts

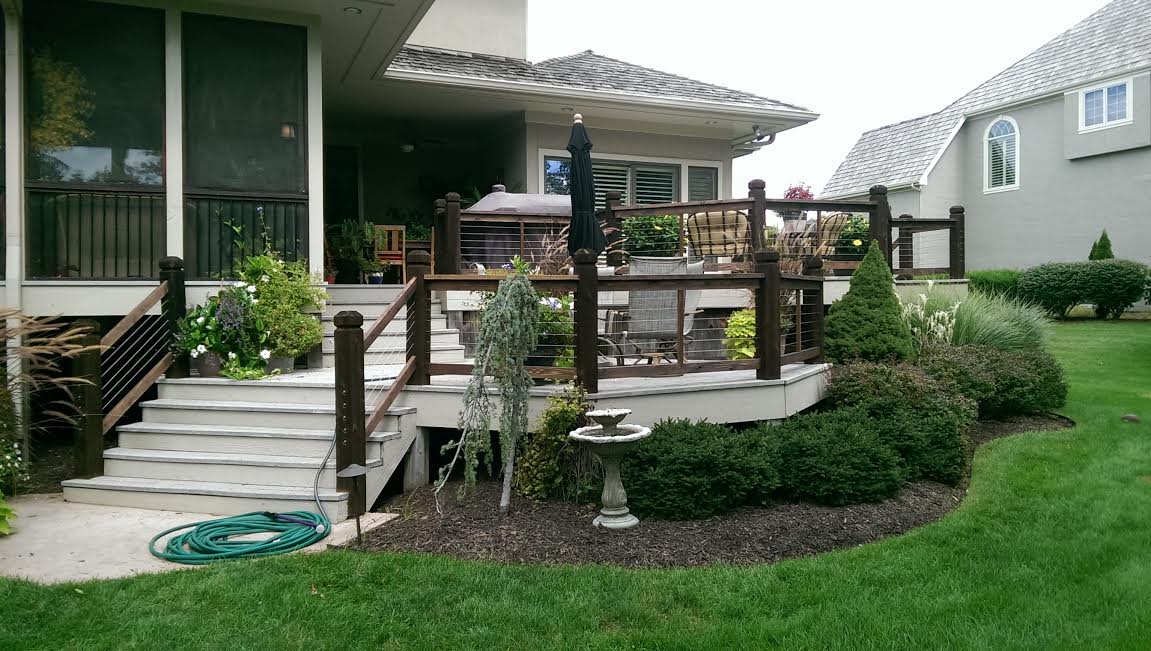

Wood CableRail Kits are designed to work with a 6x6 cedar wood post. Each kit contains materials to complete one run of cable. each section should require between 9 and 11 runs to have enough cable infill for a 36" Rail. Kits Included: A quick-connect fitting, two stainless steel washers, a washer nut, and a 7-1/2" Treaded Terminal Pre-Swaged to cable wire. CableRail Kits are available in 5 foot, 10 foot, 15 foot, 20 foot, 25 foot, 30 foot, 40 foot, and 50-foot lengths.
Feeney Intermediate Picket
Intermediate Pickets by Feeney retain adequate spacing for 1/8" Horizontal Cable, Wire, and CableRail Kits. Pickets should be positioned between posts, attaching to the underside of the top rail, and the top side of the deck or bottom rail. Intermediate pickets include two brackets and for easy installation, and screws for wood or composite handrails. Available for Level or Stair application, Feeney Intermediate Pickets space cables at 3" on center, and allow for 1/8" Cable or Wire.
Cable Release Tool by Feeney removes 1/8" Cable from any Feeney Quick-Connect Fittings. Release Tool slides between the cable and the jaws of the QC fitting to easily adjust or remove the cable.
Feeney Cable Lacing Needle
Lacing Needles by Feeney help thread the cable through posts, and are incredibly useful when going through wood posts. Though it is recommended to add a lacing needle regardless of post type. Lacing Needles are available in a standard straight, or curved for adjacent post threading. Available for 1/8" Cable Wire.
Feeney Stainless Steel End Caps 4/Pack
Stainless Steel End Caps by Feeney are used to cover Treaded Terminal Washers or Quick-Connect fittings in CableRail Kits. SS Caps are the same size as Colored End Caps but are more durable, and only made in stainless steel.
Feeney 1/8" Cable Cutter
Feeney Cable Cutters are designed to easily and precisely cut 1/8" cable wire. Use to trim wires for build your own cable systems, or to trim excess from CableRail Kits.
Feeney 1/8" Beveled Washer 4/pk #3792 and #3799
4-pack of Beveled Washers is used with CableRail Kits and is placed between the Treaded Terminal or Quick Connect and the outside of the post to give the cable run an approximate 32-degree angle "typical stair angle." Use only for termination of stair angled applications. 1/8" TT has a 9/32" Inside Diameter is used for the Treaded Terminal side of a CableRail Kit. 1/8"QC has a 3/8" Inside Diameter and is used for the Quick-Connect side a CableRail Kit. 4 Washers Per Clam
Feeney Colored End Caps 10/Pack
Feeny Colored Polyethylene End Caps over CableRail Kit fittings. Each cable requires two caps for each termination point such as TT Washer Nuts, Quick-Connect Fittings, and Angled Retaining Washers. Plastic End Caps are sold in packages of 10 and are available in Black, White, Brown (Matches Cedar), Gray, Silver, Taupe, Bronze, Green, and Cream. Add End Caps for a decorative cover with CableRail Kits. Dimensions: 3/4" x 7/16"
Feeney 1/8" Protector Sleeves (10/Bag)
Stainless Steel Protector Sleeves keep 1/8" Cable from "rubbing" or "waring" on the post where a turn in the cable appears. Protector Sleeves require a 1/4" drilled hole to fit in and accept 1/8" Cable. Use with wood 4x4 or 6x6 posts when transitioning cable railing down a set of stairs, or making a level angle turn. Protector sleeves are sold 10 per bag.
